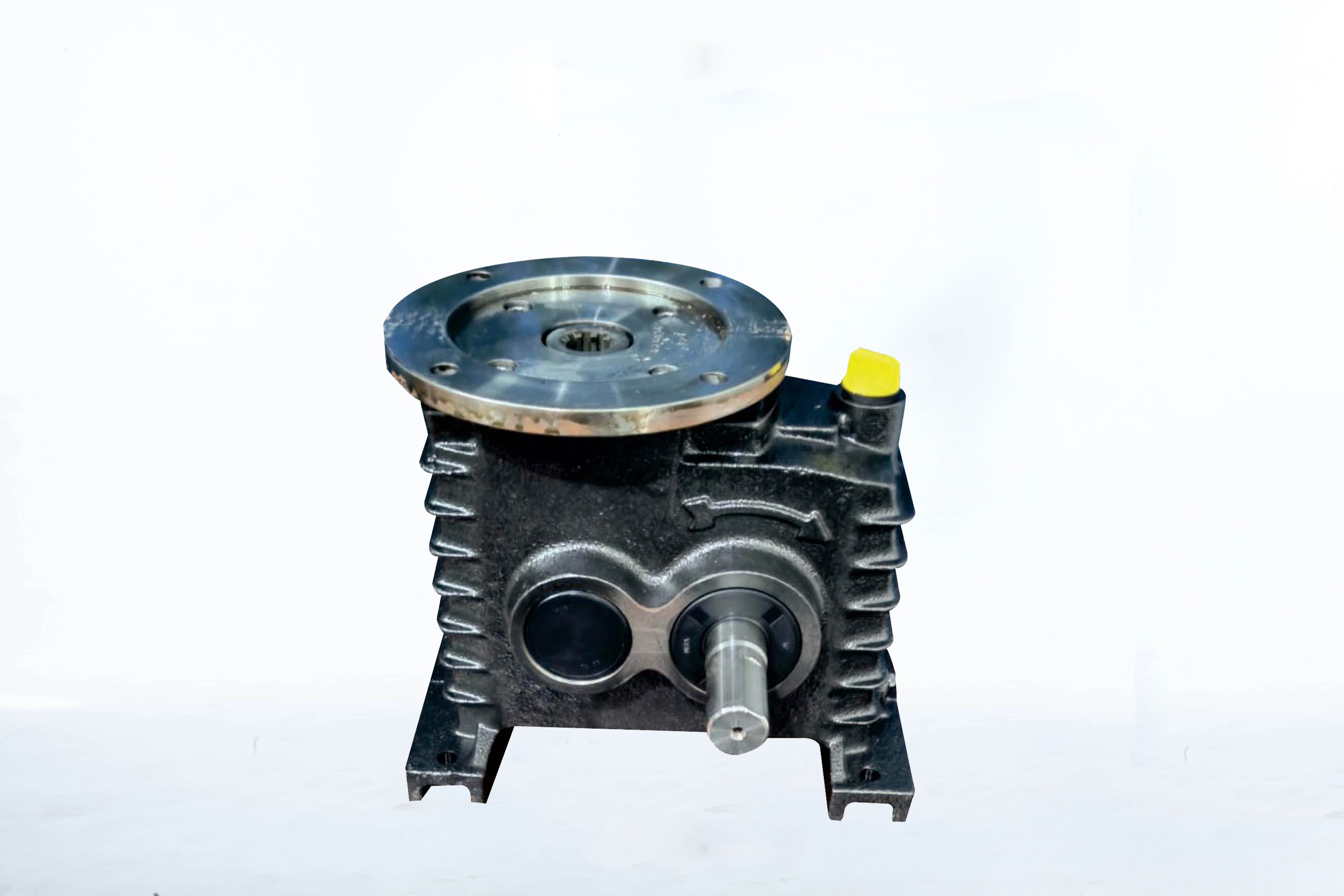

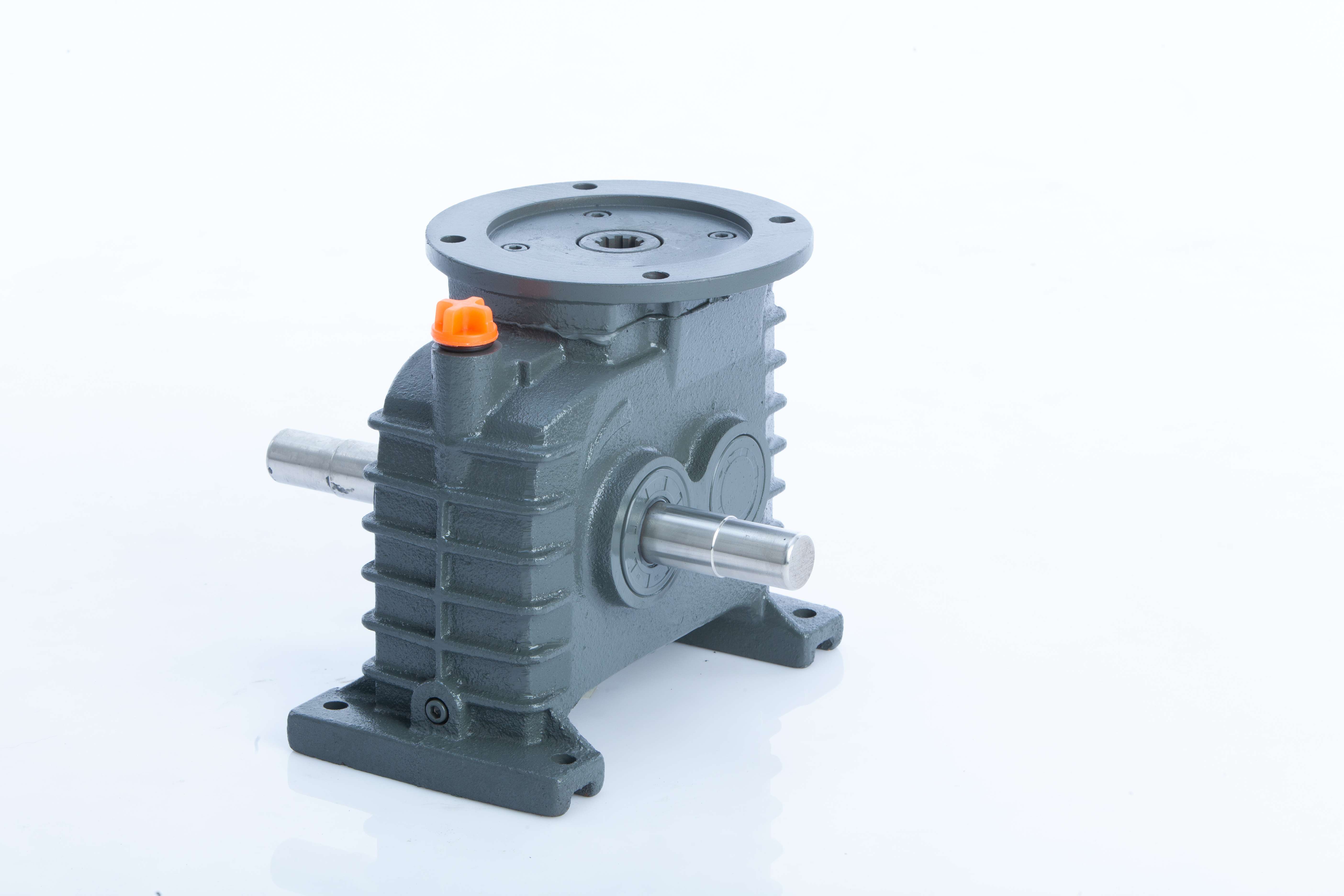

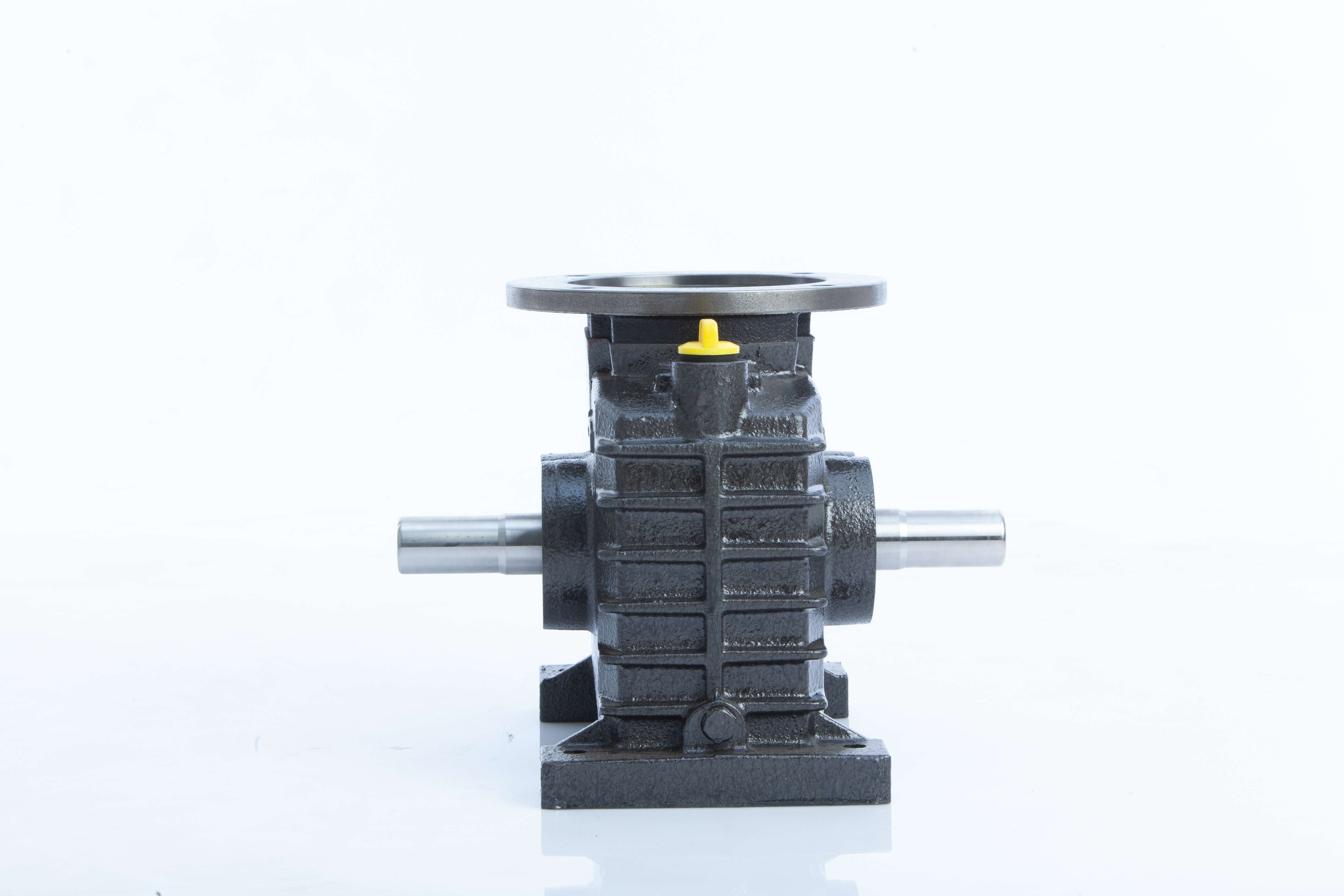

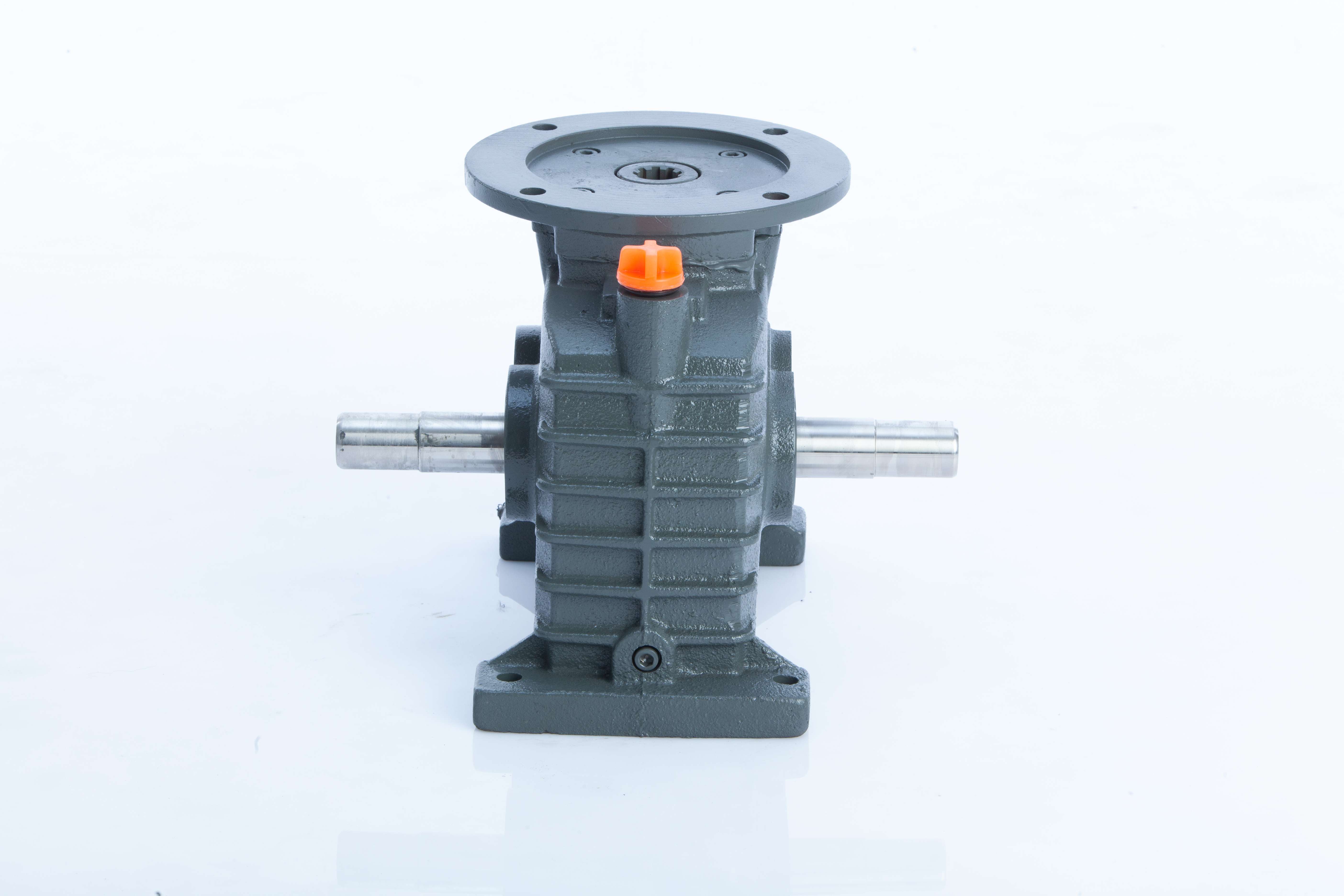

Bewel Gearbox
Specification
| Gear ratio | 1:14 / 1:12 /1:10 |
| Rpm | 105 / 120 / 140 |
| Gear type | Bewel & Helical |
| Body | Cast iron body with Electro Static powder coating |
| Bearing | 10 bearing – HCH(authentic) |
| Gear oil level | 2 liters |
| Color | Matte black |
- 1. Gearbox body is made of Cast Iron with Electro Static powder coating for anti-rust and long life.
- 2. 20MnCr5 grade bewel & helical gears work efficiently and reduces the consumption of power by 25% compared to worm gearbox.
- 3. Accurately machined by VMC machines for perfection.
- 4. Authentic quality HCH bearings are utilized for smoothness and long life of the gearbox.
- 5. Quality grade oil seal is used for preventing entry of water, improving the life of the gearbox.
Noise level
- 1. 14:1 Bwewl => 66DB
- 2. 12:1 Bwewl => 67DB
- 3. 10:1 Bwewl => 67DB
