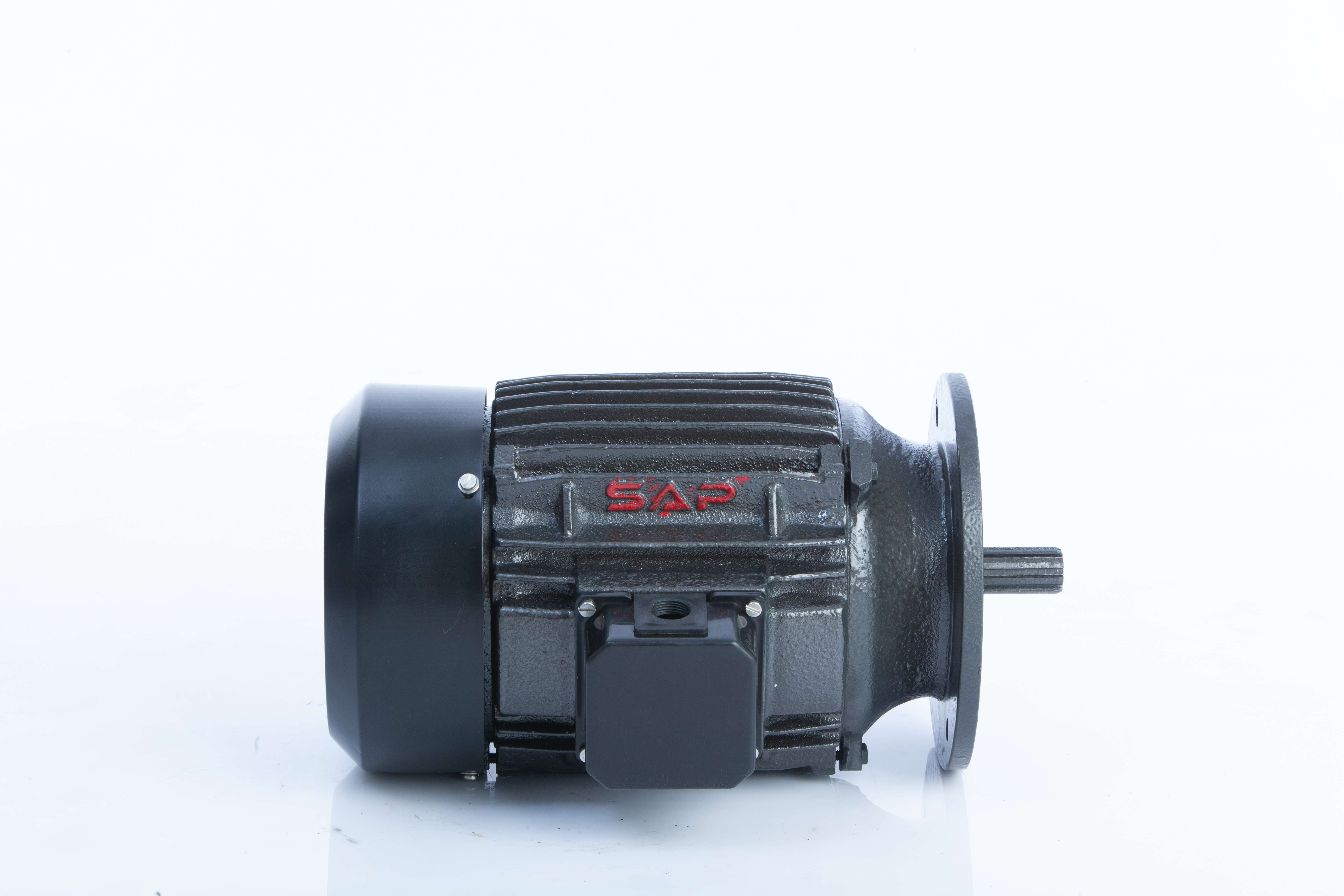

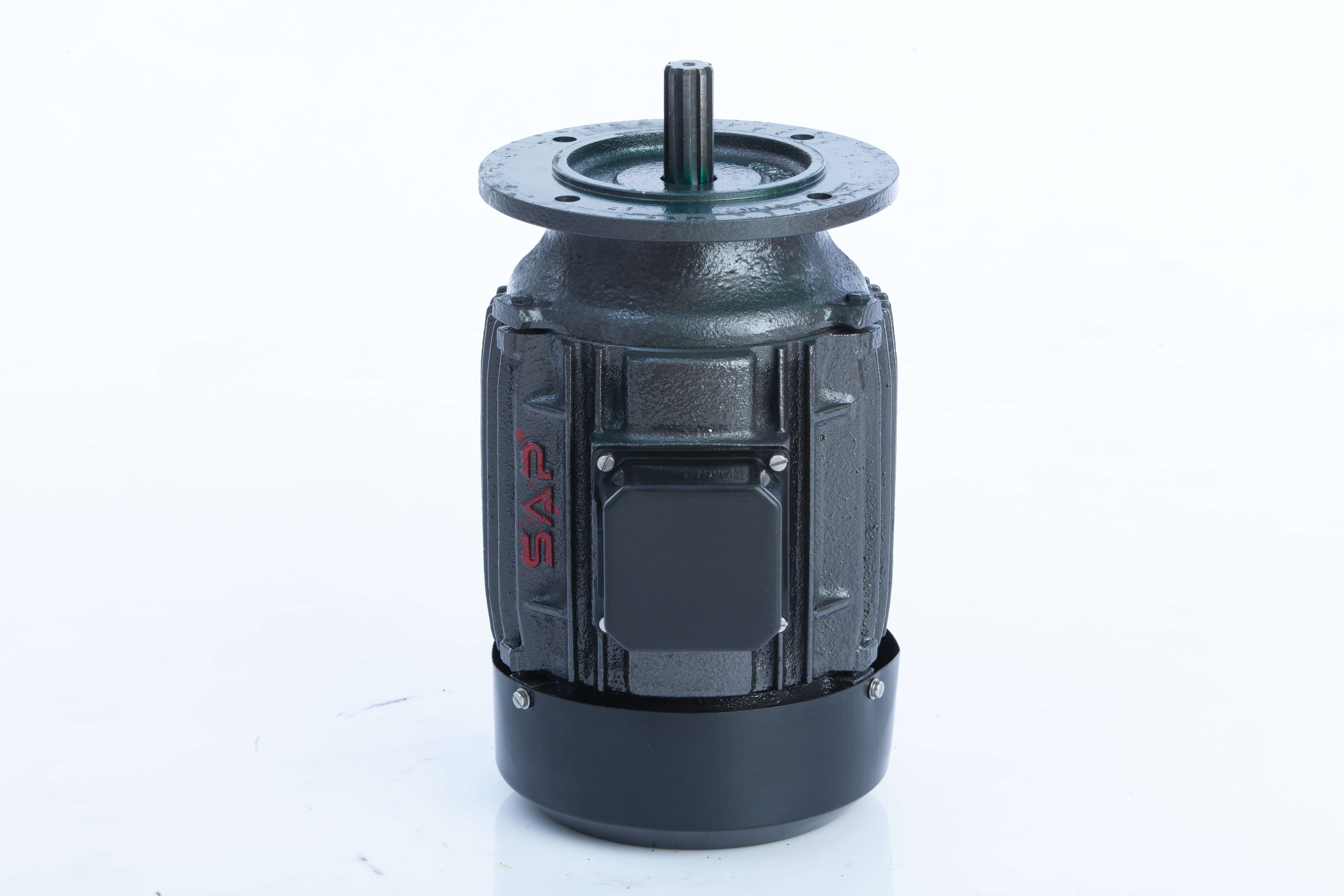

Induction Motor

• 1. ISI heavy duty motor IE – 2 standard to protect the motor from other variables. (ISI License No : CM/L – 6500058910)
• 2. The motor body is made of cast iron with electro static powder coating for smooth finishing and anti-rust properties.
• 3. Authentic HCH bearings are utilized for smoothness and long life of the motor.
• 4. TOP (Thermal Overload Protector) is fitted for auto cut-off in the event of overload and power fluctuation which safeguards the motor from damage.
• 5. The motor body is specifically designed for air circulation which reduces the heat and keeps the motor cool giving long life.
• 6. Each and every motor is tested by qualified engineers before dispatching the material for maintaining flawless performance.

Specification

Horsepower	1 HP / 2 HP / 3 HP
Phase	Single phase / Three phase
Voltage	220 V / 415 V
Motor rpm	1440
Frequency	50 Hz
Body	Cast Iron body with Electro Static powder coating
Frame	100 mm
Color	Matte black
